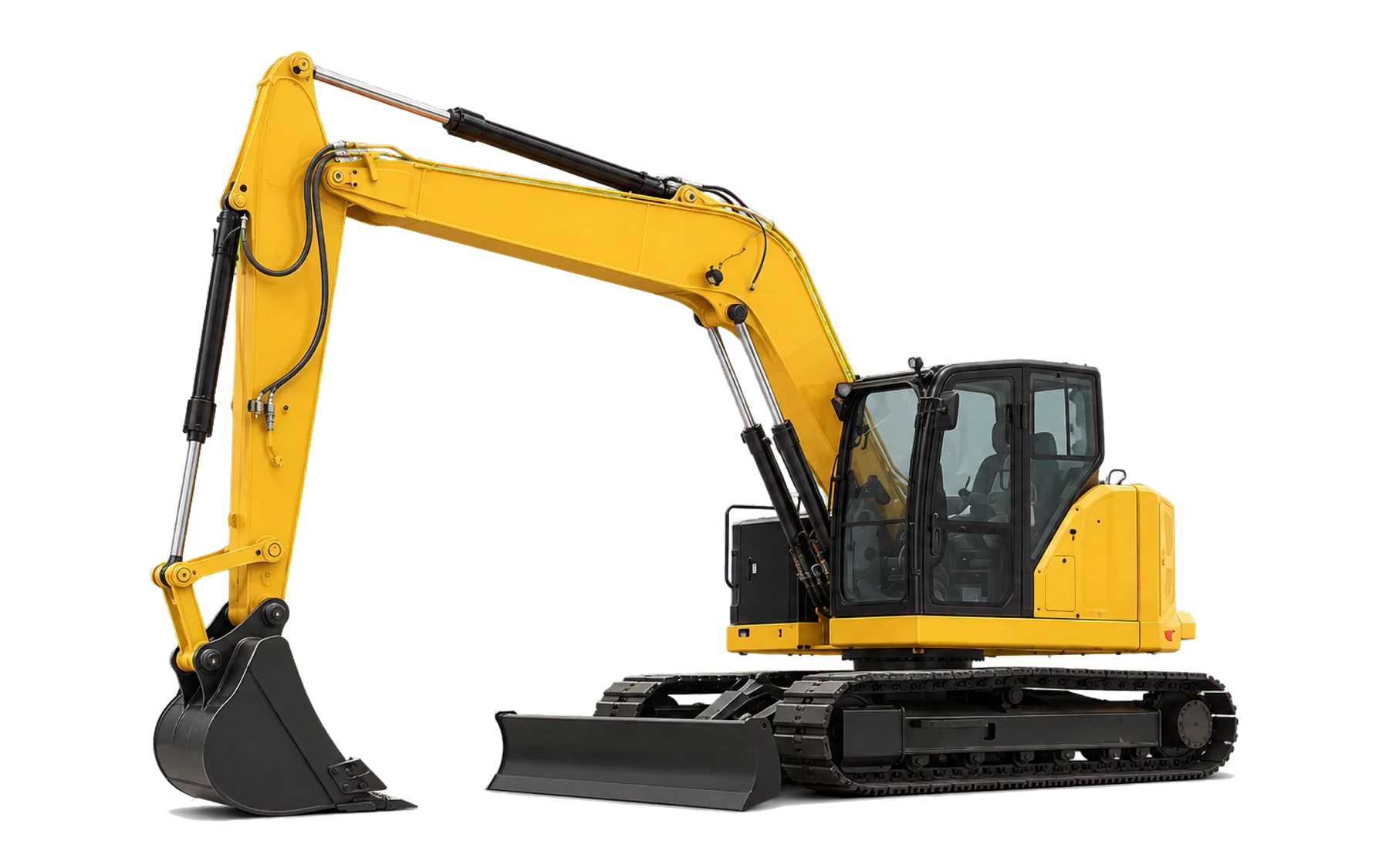

310
Mini excavators
Mini excavator of the 9.9-tonne class: Cat C3.3B engine in the Tier 3 / Stage IIIA build from Caterpillar's regional sheet for Africa, the Middle East and Eurasia.
- Passport
- Operating weight
- 9 601–10 182 kg
- Engine power
- 53.3 kW
- ISO 9249
Specification
| Operating weight | 9 601–10 182 kg |
|---|---|
| Engine power | 53.3 kW ISO 9249 |
| Engine | Cat C3.3B |
| Max. digging depth | 5 211 mm |
| Max. reach | 7 518 mm |
| Emission standard | Tier 3 / Stage IIIA |
|---|---|
| Transport length | 6 579 mm |
| Transport width | 2 470 mm |
| Transport height | 2 884 mm |
SourceCaterpillar, 310 Mini Hydraulic Excavator specalog, AEHQ8191-01 (03-2024) · read 2026-09-06 · Non-Tier-4 export variant (China Nonroad Stage III); the sheet prints no bucket capacity
