6040
Hydraulic mining shovels

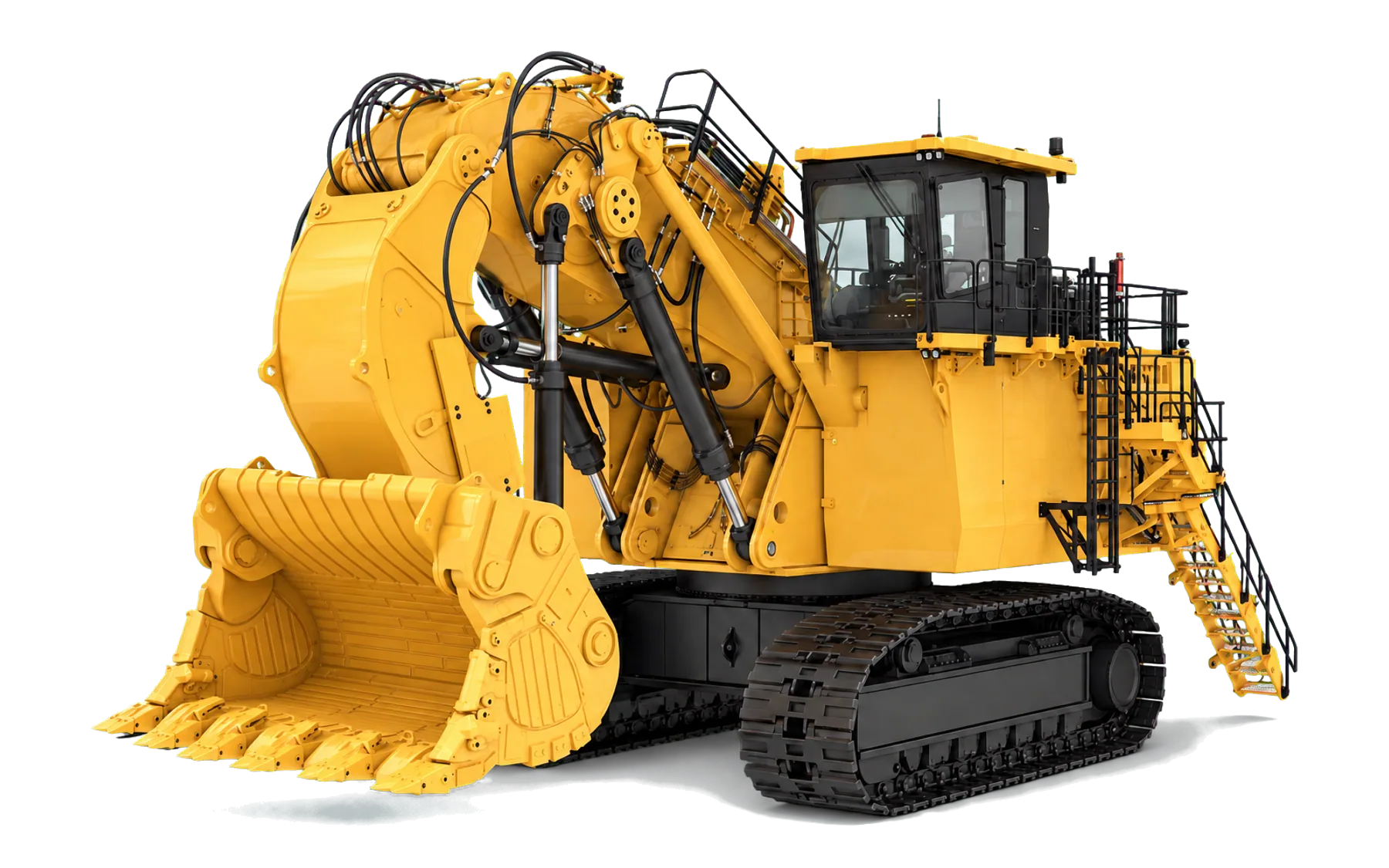

Mining excavator of the 411-tonne class: Cat 2 × C32B engine from Caterpillar's regional sheet for Africa, the Middle East and Eurasia; buckets 22–24 m³.
- Passport
- Operating weight
- 410 780–410 850 kg
- Engine power
- 1 538 kW
- ISO 9249
- Bucket capacity
- 22–24 m³
- ISO 7546
Specification
| Operating weight | 410 780–410 850 kg |
|---|---|
| Engine power | 1 538 kW ISO 9249 |
| Bucket capacity | 22–24 m³ ISO 7546 |
| Engine | Cat 2 × C32B |
| Max. digging depth | 2 800–7 000 mm |
|---|---|
| Max. reach | 15 700–17 700 mm |
| Transport width | 8 126 mm |
| Transport height | 8 344 mm |
SourceTechnical Specifications - 6040 Hydraulic Mining Shovel, AEXQ3125-03 (10-2025), Replaces AEXQ3125-02, Build Number: 03B · read 2026-09-08 · Build 03B; regional sheet for Africa, the Middle East and Eurasia
