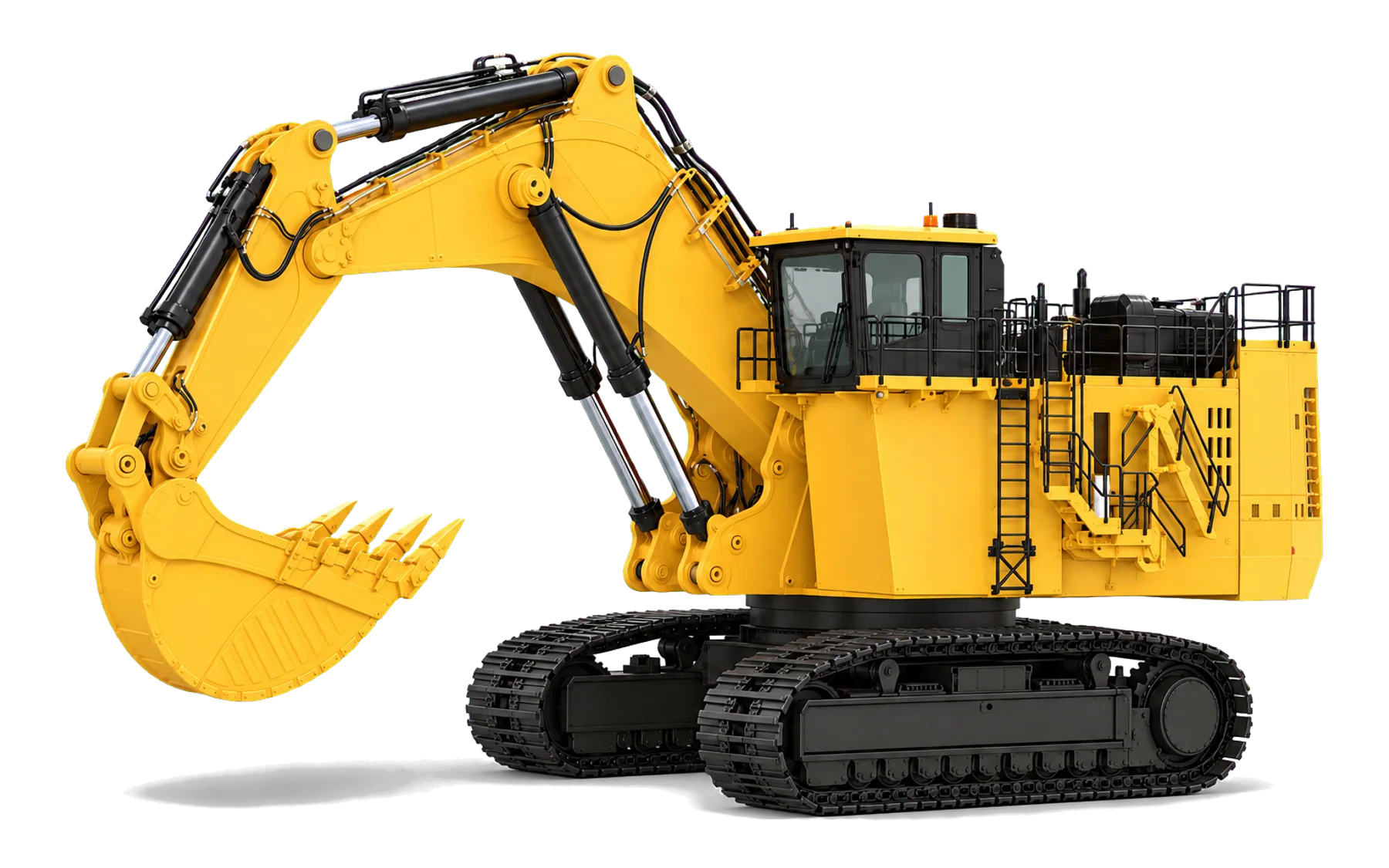

6060
Hydraulic mining shovels
Mining excavator of the 600-tonne class: Cat 2 × 3512E engine from Caterpillar's regional sheet for Africa, the Middle East and Eurasia; buckets 26–36 m³.
- Passport
- Operating weight
- 598 800–600 500 kg
- Engine power
- 2 229 kW
- ISO 9249
- Bucket capacity
- 26–36 m³
- ISO 7451
Specification
| Operating weight | 598 800–600 500 kg |
|---|---|
| Engine power | 2 229 kW ISO 9249 |
| Bucket capacity | 26–36 m³ ISO 7451 |
| Engine | Cat 2 × 3512E |
| Max. digging depth | 8 900 mm |
|---|---|
| Max. reach | 19 000 mm |
| Transport width | 8 700 mm |
| Transport height | 9 110 mm |
Source6060 Hydraulic Shovel Technical Specifications — AEXQ2737-01 (09-2022), Replaces AEXQ2737, Build Number 03A (Global) · read 2026-09-08 · Build 03A; regional sheet for Africa, the Middle East and Eurasia
