707
Wide body trucks

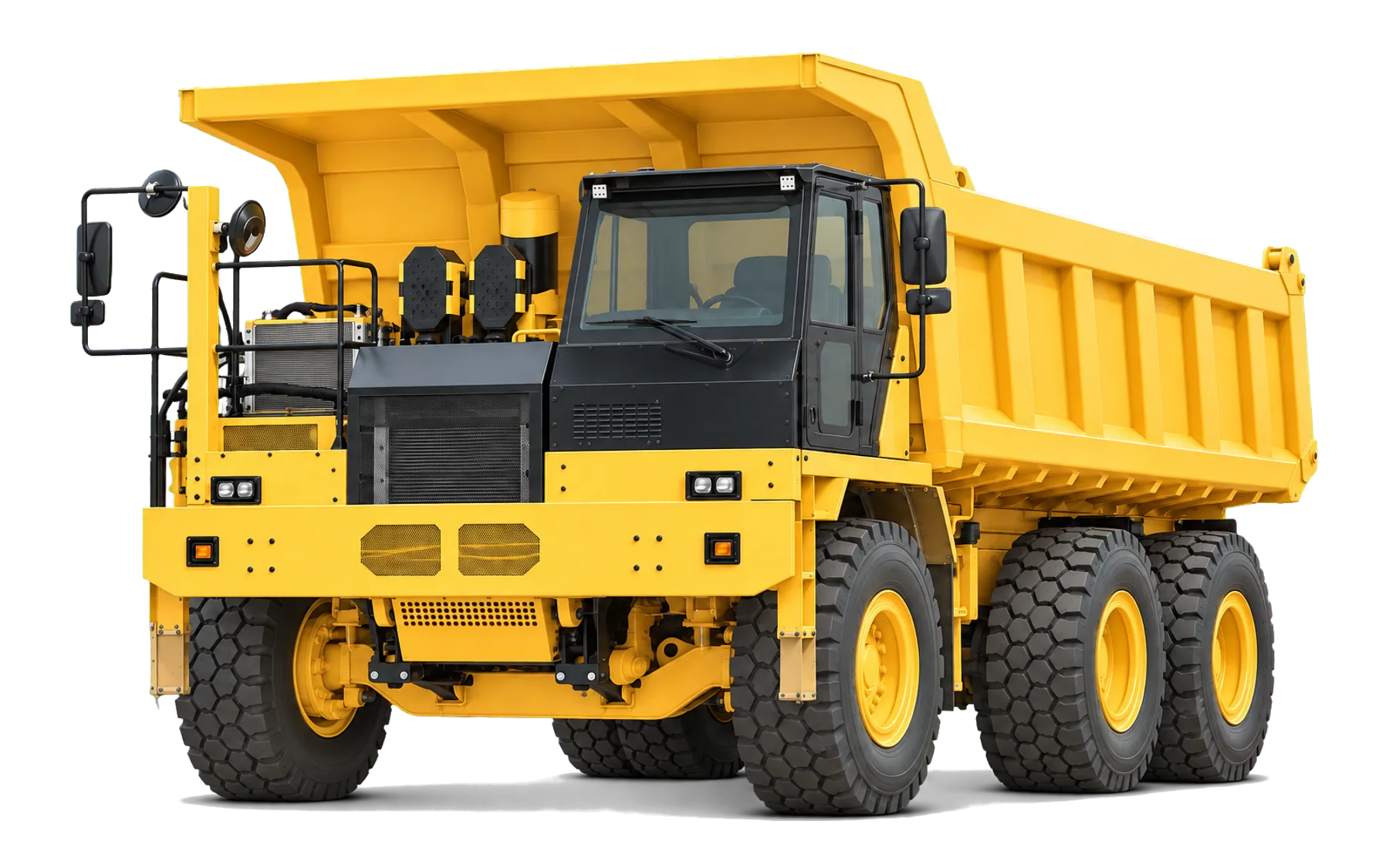

Wide body truck of the 66.0-tonne payload class: Cat C13 (Tier 3 equivalent) or Cat C13B (China Nonroad Stage IV) engine from Caterpillar's regional sheet for Africa, the Middle East and Eurasia; body 40–42 m³.
- Passport
- Payload
- 66 000 kg
- Engine power
- 358–400 kW
- Body volume
- 40–42 m³
- SAE 2:1
Specification
| Payload | 66 000 kg |
|---|---|
| Engine power | 358–400 kW |
| Body volume | 40–42 m³ SAE 2:1 |
| Engine | Cat C13 (Tier 3 equivalent) or Cat C13B (China Nonroad Stage IV) |
| Transport length | 9 075 mm |
|---|---|
| Transport width | 3 670 mm |
| Transport height | 3 340 mm |
Source707 Wide Body Truck Technical Specifications, AEXQ4409-00 (01-2026), Build Number: 01 (Afr-ME, Asia Pacific, S AM [exclu · read 2026-09-08 · sheet territories: the variant relevant to the Middle East and Central Asia
