730
Articulated trucks

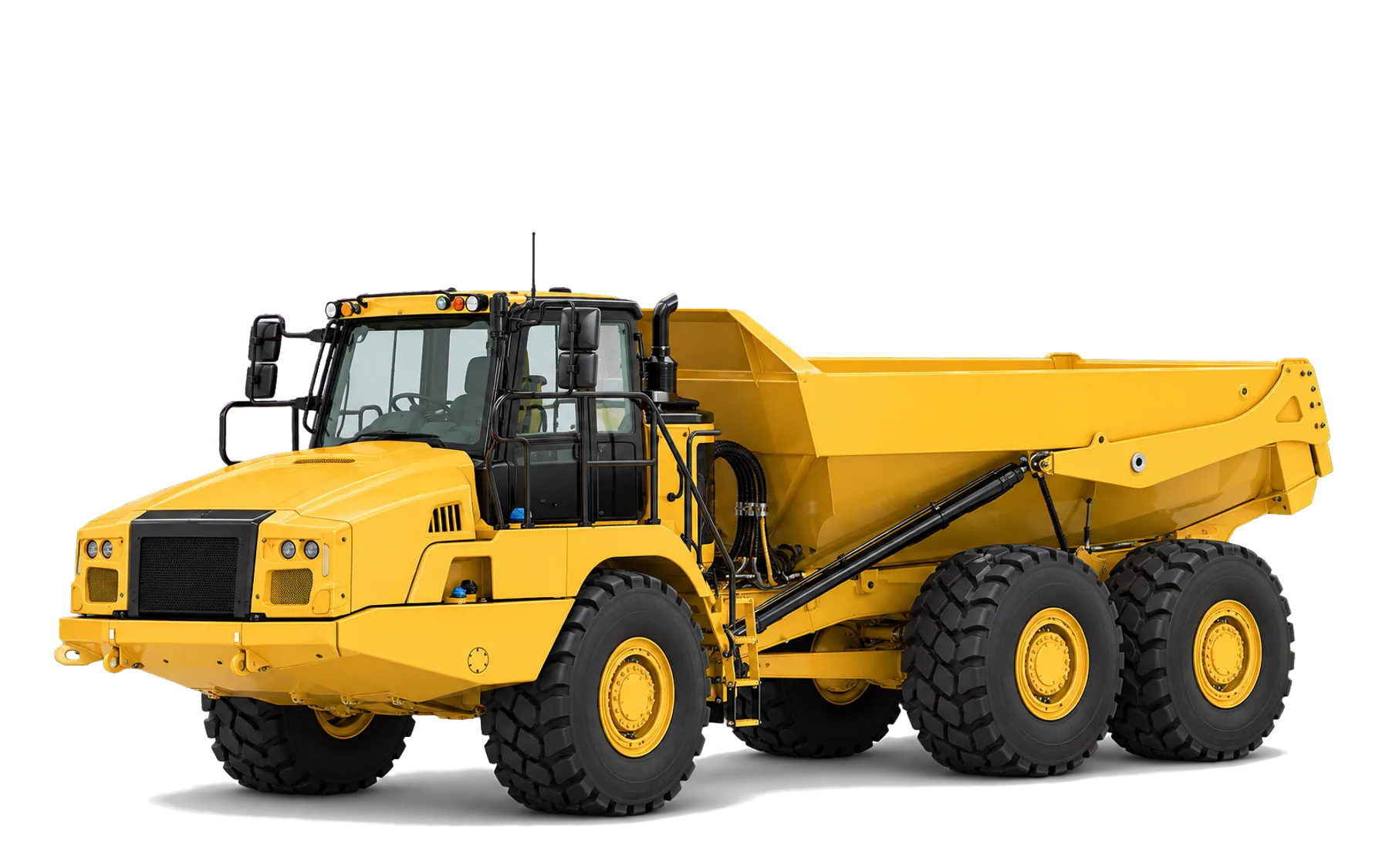

Articulated dump truck of the 28.0-tonne payload class: Cat C13A engine from Caterpillar's regional sheet for Africa, the Middle East and Eurasia; body 17.6 m³.
- Passport
- Payload
- 28 000 kg
- Engine power
- 274 kW
- SAE J1349
- Body volume
- 17.6 m³
- SAE 2:1
Specification
| Payload | 28 000 kg |
|---|---|
| Engine power | 274 kW SAE J1349 |
| Body volume | 17.6 m³ SAE 2:1 |
| Engine | Cat C13A |
| Gross vehicle weight | 51 300 kg |
| Drive configuration | Three axle, six-wheel drive |
|---|---|
| Transport length | 10 445 mm |
| Transport width | 2 877 mm |
| Transport height | 3 498 mm |
Source730 Articulated Truck Technical Specifications (AEXQ3916-00, 12-2025, Build Number 05A) · read 2026-09-08 · Build 05A; sheet territories: Afr-ME, Aus-NZ, Eurasia, Indonesia, Pacific Islands, S Am
