735
Articulated trucks

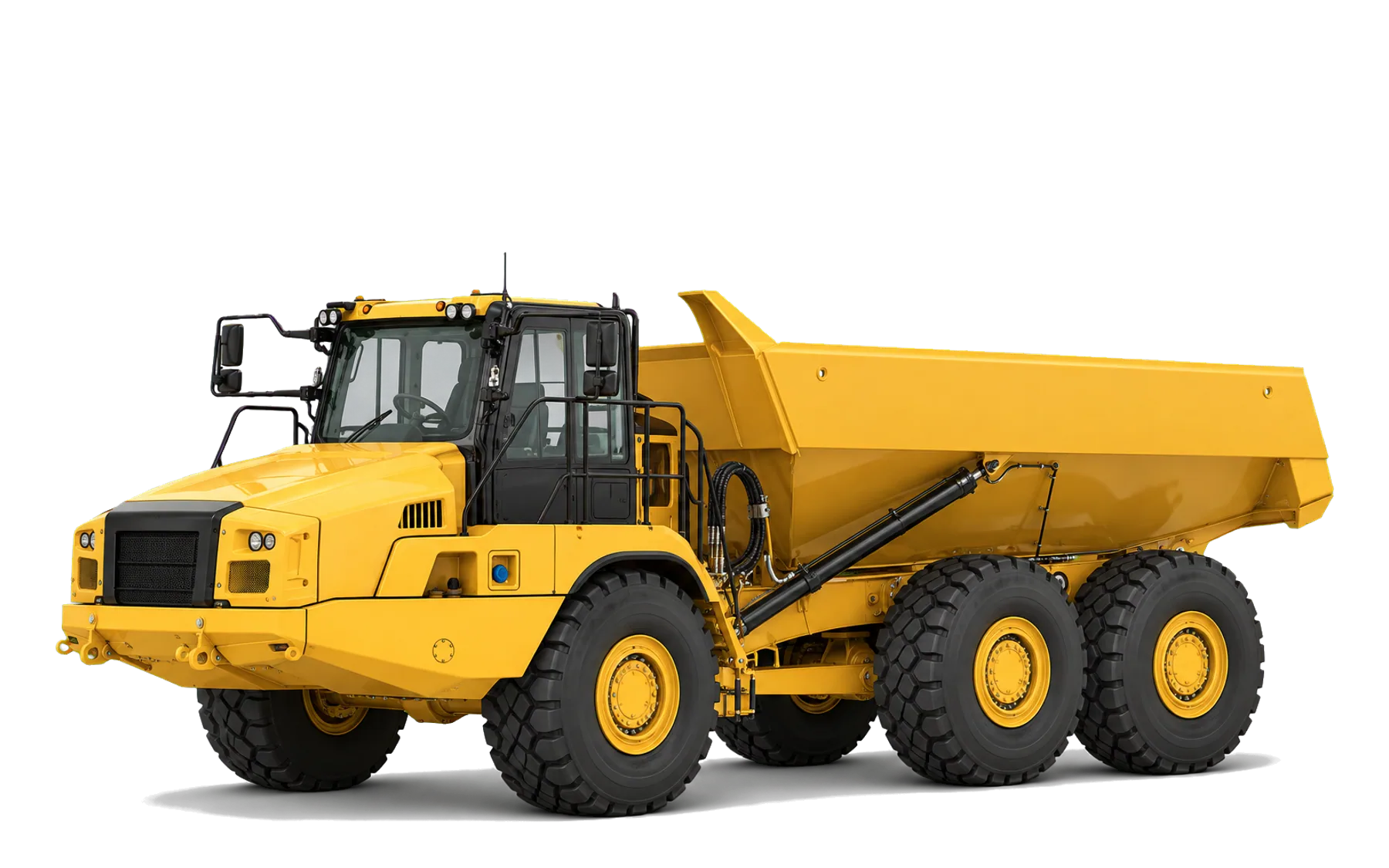

Articulated dump truck of the 32.0-tonne payload class: Cat C13A engine from Caterpillar's regional sheet for Africa, the Middle East and Eurasia; body 20 m³.
- Passport
- Payload
- 32 000 kg
- Engine power
- 298 kW
- SAE J1349
- Body volume
- 20 m³
- SAE 2:1
Specification
| Payload | 32 000 kg |
|---|---|
| Engine power | 298 kW SAE J1349 |
| Body volume | 20 m³ SAE 2:1 |
| Engine | Cat C13A |
| Gross vehicle weight | 56 580 kg |
| Drive configuration | Three axle, six-wheel drive |
|---|---|
| Transport length | 10 445 mm |
| Transport width | 2 950 mm |
| Transport height | 3 488 mm |
Source735 Articulated Truck Technical Specifications — AEXQ3918-00 (12-2025), Build Number: 05A · read 2026-09-08 · Build 05A; regional sheet for Africa, the Middle East and Eurasia
