745
Articulated trucks

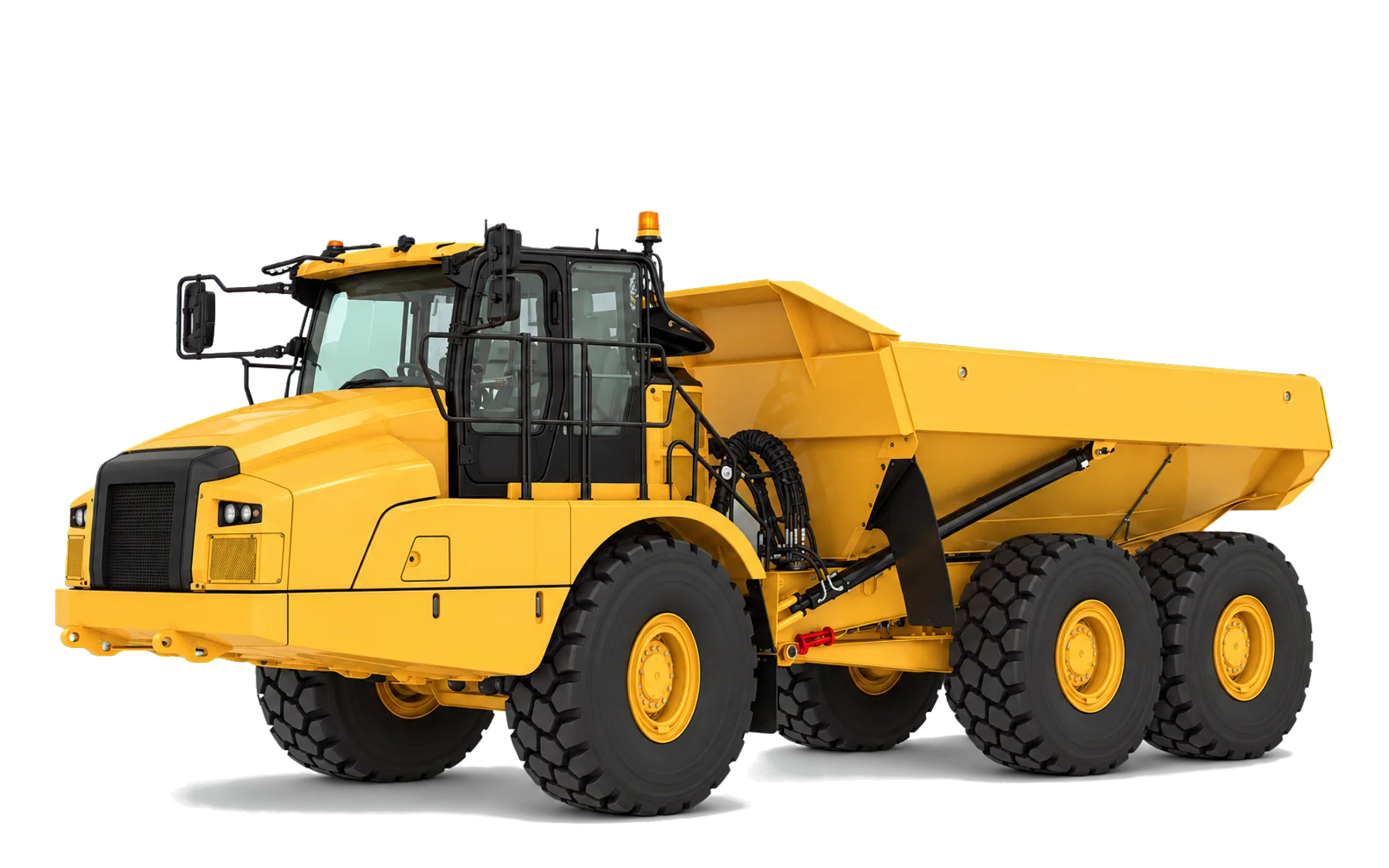

Articulated dump truck of the 41.0-tonne payload class: Cat C18 engine from Caterpillar's regional sheet for Africa, the Middle East and Eurasia; body 25.5 m³.
- Passport
- Payload
- 41 000 kg
- Engine power
- 370 kW
- SAE J1349
- Body volume
- 25.5 m³
- SAE 2:1
Specification
| Payload | 41 000 kg |
|---|---|
| Engine power | 370 kW SAE J1349 |
| Body volume | 25.5 m³ SAE 2:1 |
| Engine | Cat C18 |
| Gross vehicle weight | 74 110 kg |
| Drive configuration | Three axle, six-wheel drive |
|---|---|
| Transport length | 11 432 mm |
| Transport width | 3 801 mm |
| Transport height | 3 762 mm |
Source745 Articulated Truck Technical Specifications, AEXQ3088-03 (06-2025), Build Number 04A · read 2026-09-08 · Build 04A; sheet territories: Afr-ME, Aus-NZ, Eurasia, S Am, Pacific Islands
