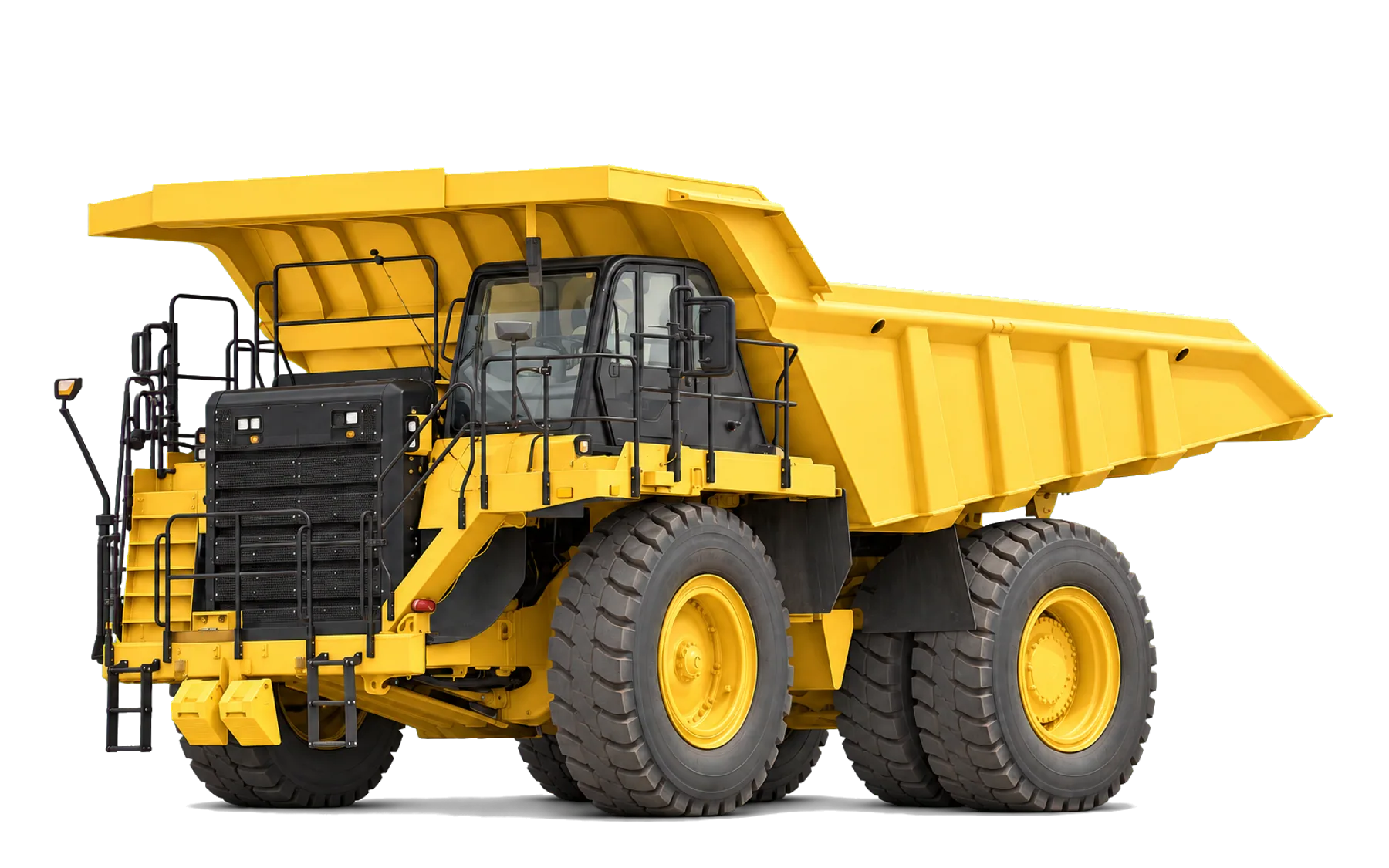

777
Off-highway trucks
Off-highway truck of the 96.7-tonne payload class: Cat C32B engine from Caterpillar's regional sheet for Africa, the Middle East and Eurasia; body 60.1–64.1 m³.
- Passport
- Payload
- 96 707 kg
- Engine power
- 704 kW
- ISO 9249
- Body volume
- 60.1–64.1 m³
- ISO 6483
Specification
| Payload | 96 707 kg |
|---|---|
| Engine power | 704 kW ISO 9249 |
| Body volume | 60.1–64.1 m³ ISO 6483 |
| Engine | Cat C32B |
| Gross vehicle weight | 164 654 kg |
|---|---|
| Transport length | 10 535 mm |
| Transport width | 5 223 mm |
| Transport height | 4 730 mm |
Source777 Off-Highway Truck Technical Specifications, AEXQ3420-04 (12-2025), Build number: 07 (Global) · read 2026-09-08 · regional sheet for Africa, the Middle East and Eurasia
