793
Mining trucks

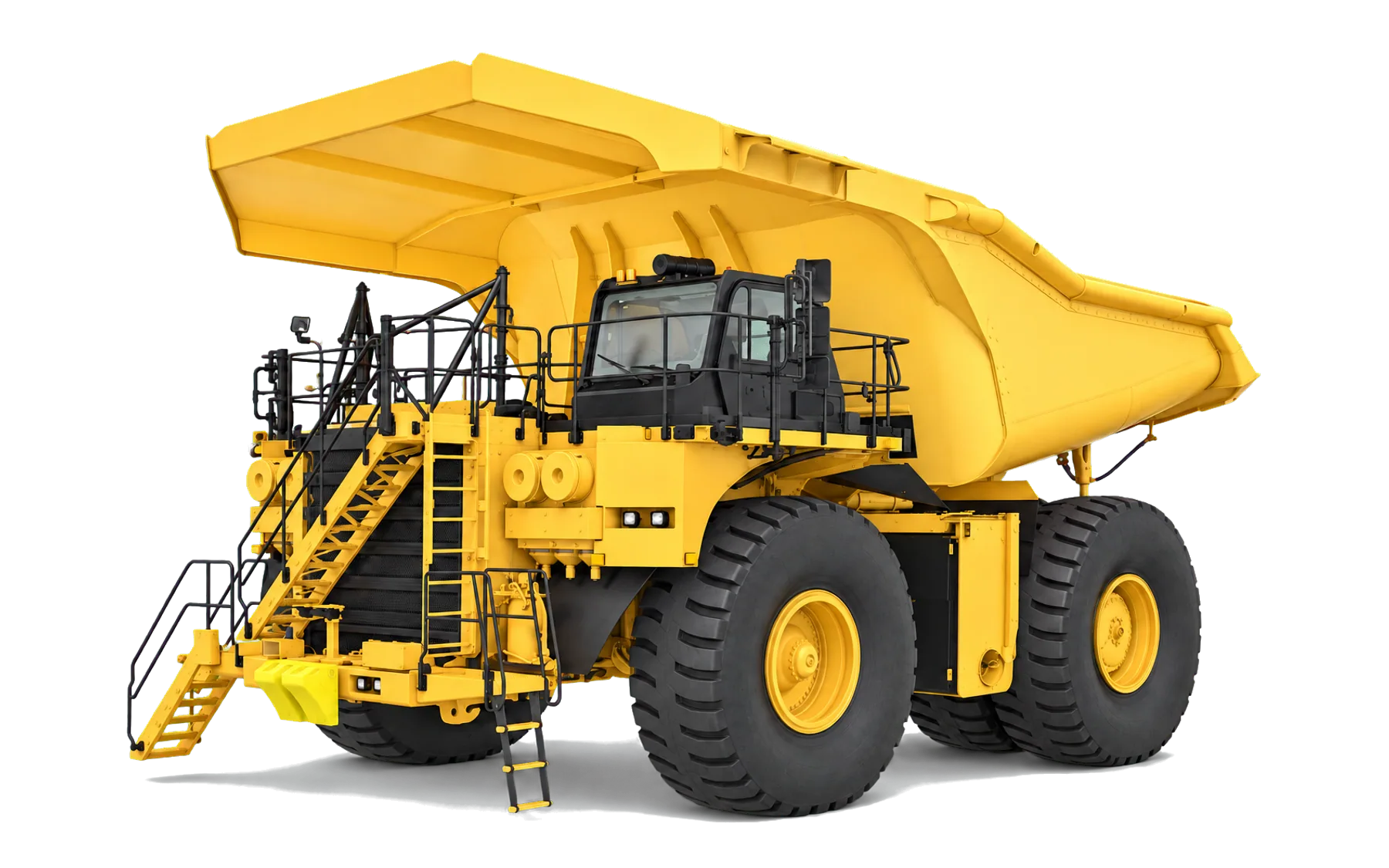

Mining truck of the 240-tonne payload class: Cat C175-16 engine from Caterpillar's regional sheet for Africa, the Middle East and Eurasia; body 162–190 m³.
- Passport
- Payload
- 240 000 kg
- Engine power
- 1 886 kW
- SAE J1349
- Body volume
- 162–190 m³
- SAE 2:1
Specification
| Payload | 240 000 kg |
|---|---|
| Engine power | 1 886 kW SAE J1349 |
| Body volume | 162–190 m³ SAE 2:1 |
| Engine | Cat C175-16 |
| Gross vehicle weight | 404 000 kg |
|---|---|
| Transport length | 13 360 mm |
| Transport width | 7 605 mm |
| Transport height | 5 712 mm |
SourceTechnical Specifications 793 Mining Truck — AEHQ6640-02 (10-2022), Replaces AEHQ6640-01, Build Number: 08A (Global exclu · read 2026-09-08 · Build 08A; regional sheet for Africa, the Middle East and Eurasia
