6020
Hydraulic mining shovels

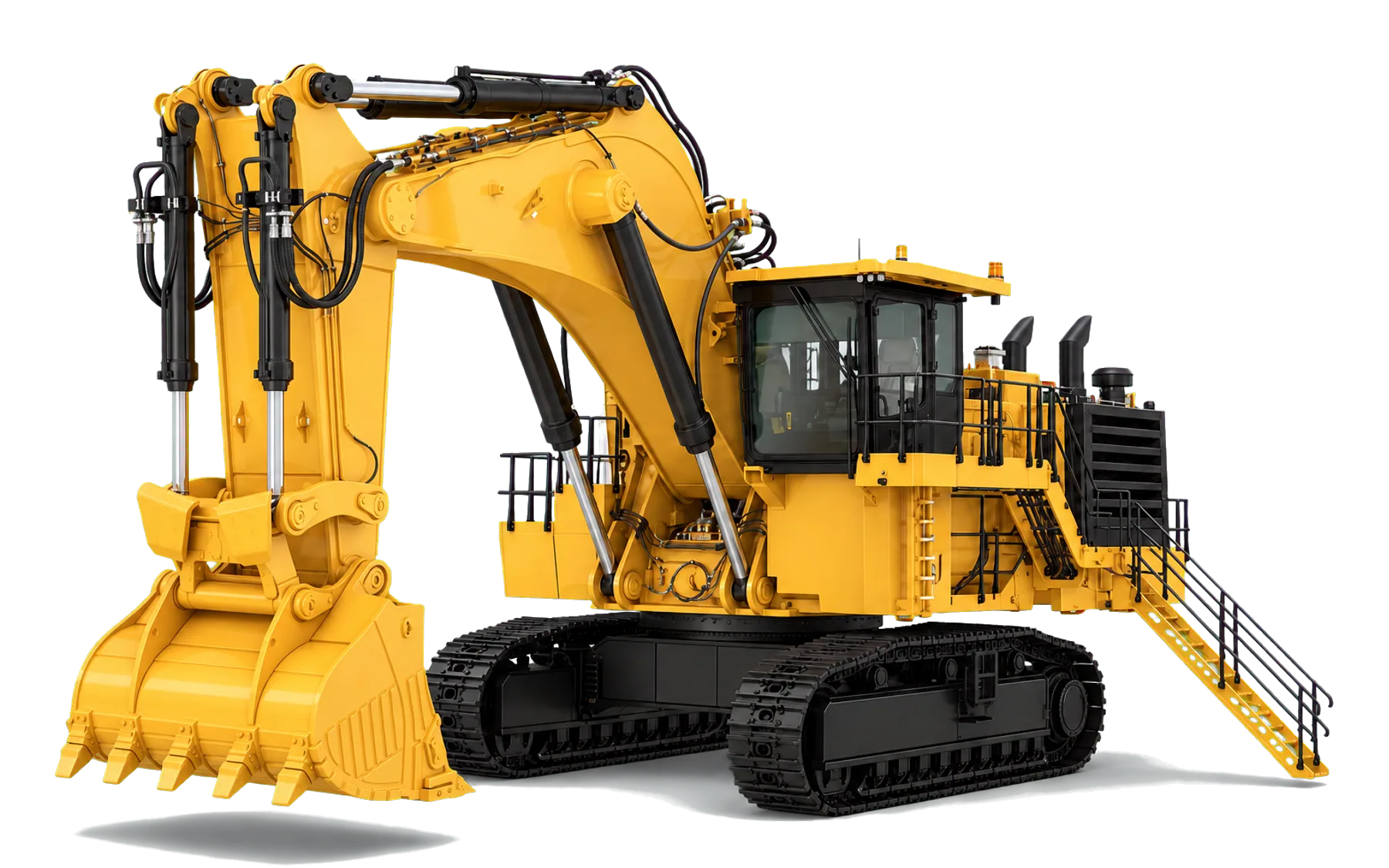

Mining excavator of the 232-tonne class: Cat C32B engine in the Tier 2 equivalent (China Nonroad Stage III) build from Caterpillar's regional sheet for Africa, the Middle East and Eurasia; buckets 9–13.7 m³.
- Passport
- Operating weight
- 232 050 kg
- Engine power
- 774 kW
- ISO 9249
- Bucket capacity
- 9.0–13.7 m³
- ISO 7451
Specification
| Operating weight | 232 050 kg |
|---|---|
| Engine power | 774 kW ISO 9249 |
| Bucket capacity | 9.0–13.7 m³ ISO 7451 |
| Engine | Cat C32B |
| Max. digging depth | 8 100 mm |
|---|---|
| Max. reach | 15 900 mm |
| Emission standard | Tier 2 equivalent (China Nonroad Stage III) |
| Transport height | 6 920 mm |
Source6020 Hydraulic Mining Shovel Technical Specifications — AEXQ3642-01 (12-2024), Replaces AEXQ3642-00, Build Number 04B (G · read 2026-09-08 · Build 04B; regional sheet for Africa, the Middle East and Eurasia
