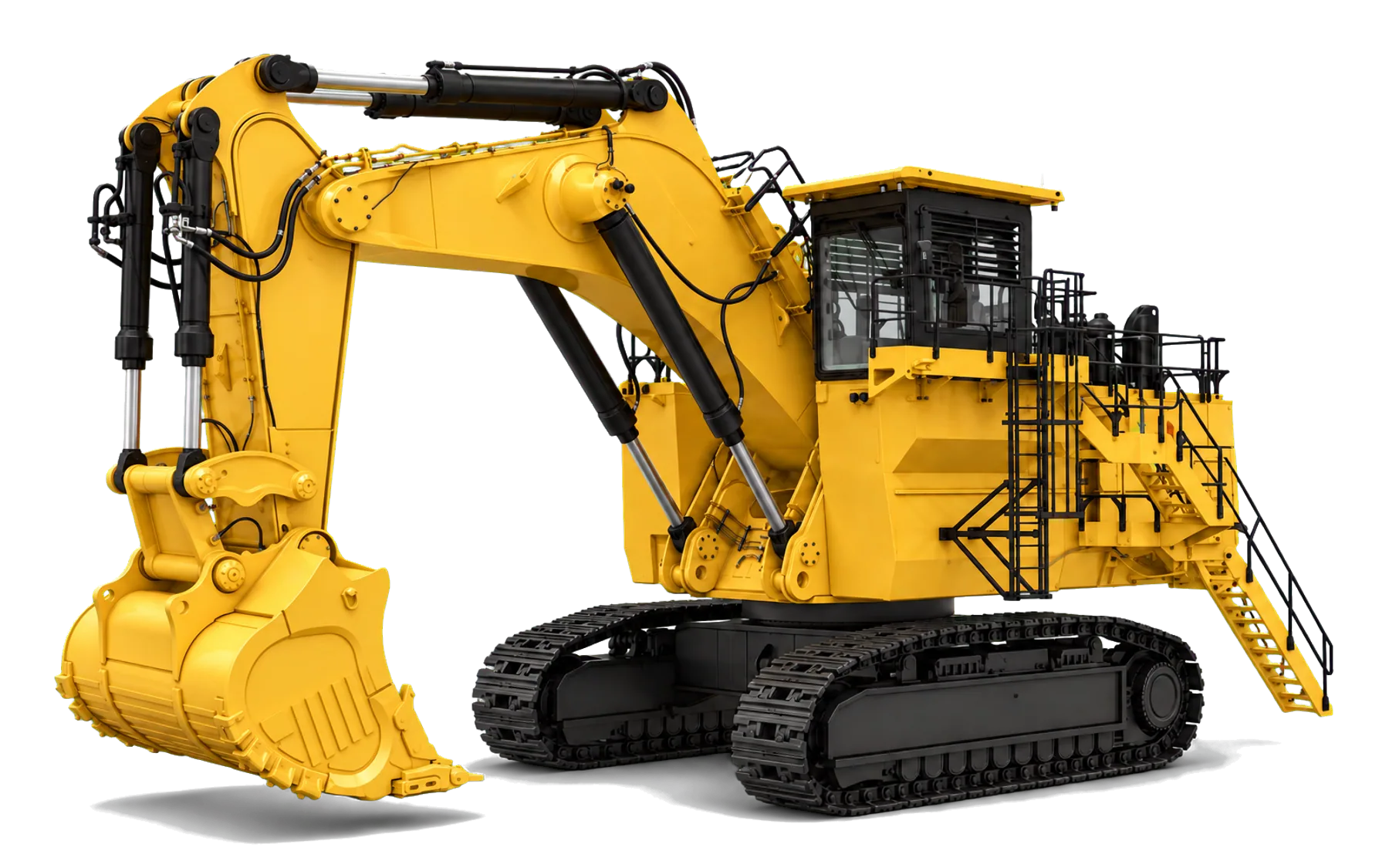

6030
Hydraulic mining shovels
Mining excavator of the 299-tonne class: Cat 2 × C27 engine in the Tier 2 equivalent (China Nonroad Stage III) build from Caterpillar's regional sheet for Africa, the Middle East and Eurasia; buckets 12–18 m³.
- Passport
- Operating weight
- 299 400 kg
- Engine power
- 1 127 kW
- ISO 9249
- Bucket capacity
- 12–18 m³
- ISO 7451
Specification
| Operating weight | 299 400 kg |
|---|---|
| Engine power | 1 127 kW ISO 9249 |
| Bucket capacity | 12–18 m³ ISO 7451 |
| Engine | Cat 2 × C27 |
| Max. digging depth | 6 200 mm |
| Max. reach | 15 100 mm |
|---|---|
| Emission standard | Tier 2 equivalent (China Nonroad Stage III) |
| Transport width | 7 520 mm |
| Transport height | 8 050 mm |
SourceTechnical Specifications – 6030 Hydraulic Shovel, AEXQ2548-02 (06-2022), Replaces AEXQ2548-01, Build Number: 03B (Global · read 2026-09-08 · Build 03B; regional sheet for Africa, the Middle East and Eurasia
