740
Articulated trucks

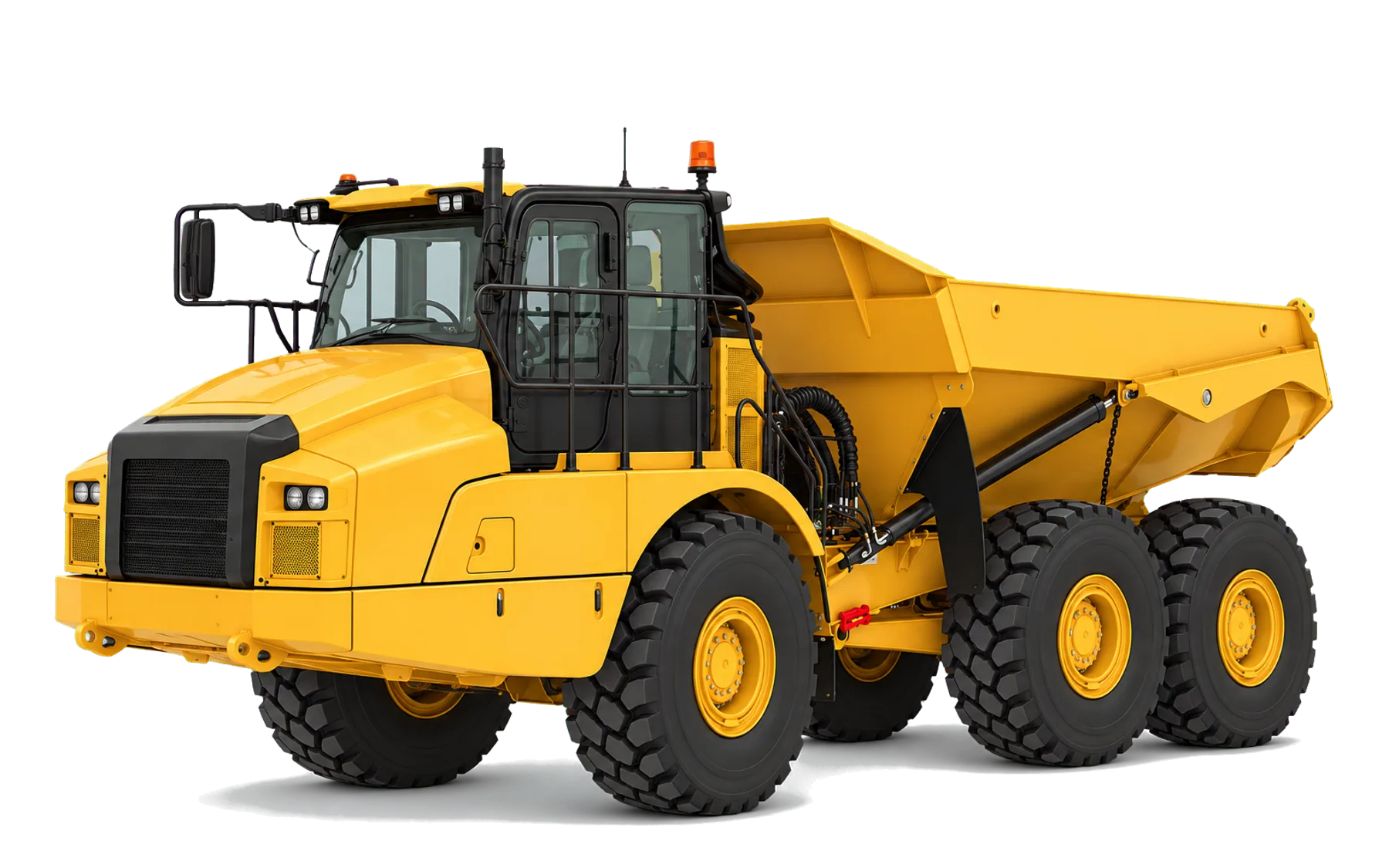

Articulated dump truck of the 36.3-tonne payload class: Cat C15 engine from Caterpillar's regional sheet for Africa, the Middle East and Eurasia; body 22.7 m³.
- Passport
- Payload
- 36 300 kg
- Engine power
- 324 kW
- SAE J1349
- Body volume
- 22.7 m³
- SAE 2:1
Specification
| Payload | 36 300 kg |
|---|---|
| Engine power | 324 kW SAE J1349 |
| Body volume | 22.7 m³ SAE 2:1 |
| Engine | Cat C15 |
| Gross vehicle weight | 68 860 kg |
| Drive configuration | Three axle, six-wheel drive |
|---|---|
| Transport length | 11 065 mm |
| Transport width | 3 370 mm |
| Transport height | 3 757 mm |
Source740 Articulated Truck Technical Specifications, AEXQ4550-00 (12-2025), Build Number 04B · read 2026-09-08 · Build 04B; regional sheet for Africa, the Middle East and Eurasia
