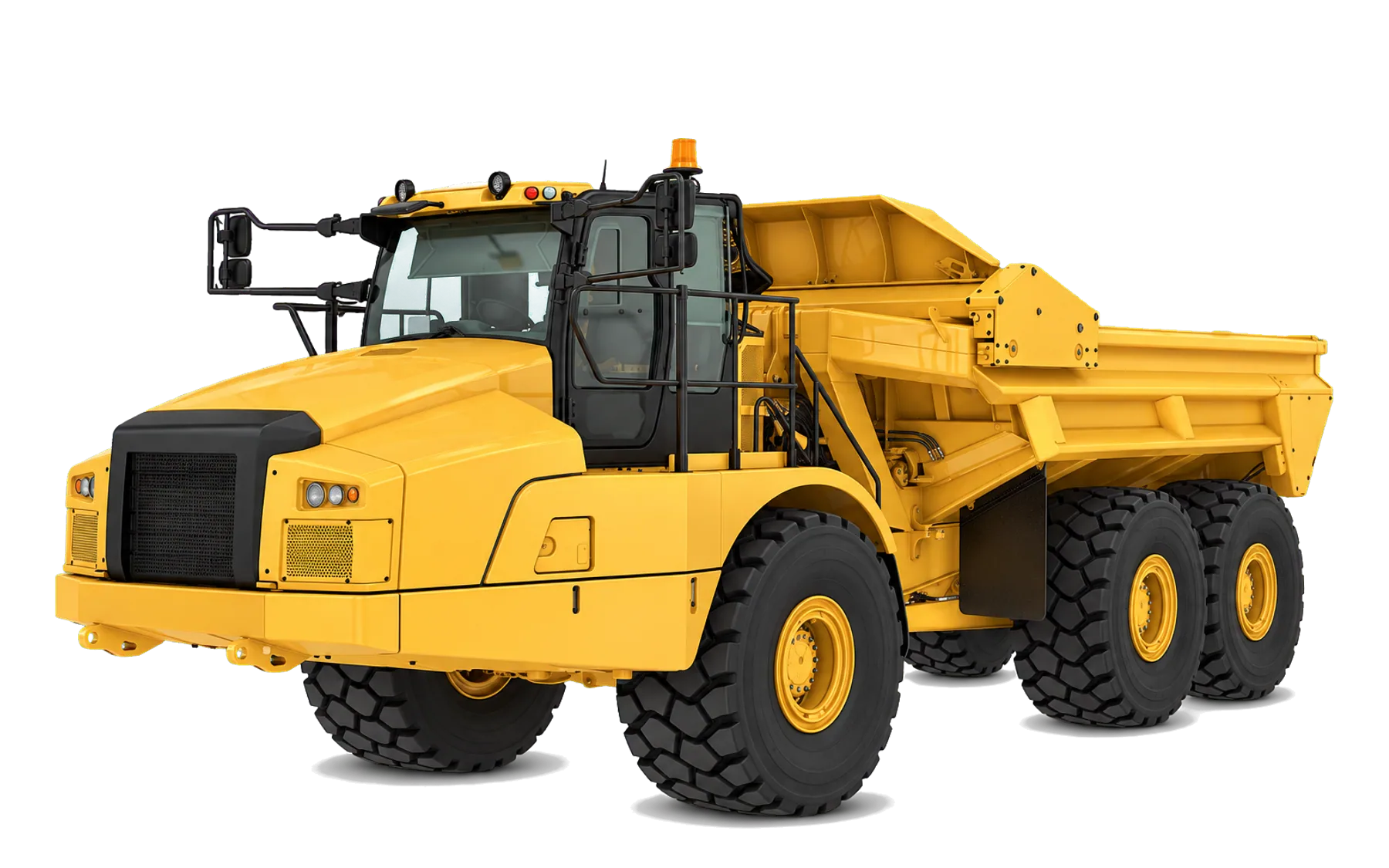

740 EJ
Articulated trucks
Articulated dump truck of the 38.0-tonne payload class: Cat C18 engine from Caterpillar's regional sheet for Africa, the Middle East and Eurasia; body 23 m³.
- Passport
- Payload
- 38 000 kg
- Engine power
- 370 kW
- SAE J1349
- Body volume
- 23 m³
- SAE 2:1
Specification
| Payload | 38 000 kg |
|---|---|
| Engine power | 370 kW SAE J1349 |
| Body volume | 23 m³ SAE 2:1 |
| Engine | Cat C18 |
| Gross vehicle weight | 73 290 kg |
|---|---|
| Drive configuration | Three axle, six-wheel drive |
| Transport length | 11 764 mm |
| Transport height | 3 752 mm |
Source740 EJ Articulated Truck Technical Specifications, AEXQ3007-02 (09-2025), Build Number 04A · read 2026-09-08 · Build 04A; regional sheet for Africa, the Middle East and Eurasia
