770
Off-highway trucks

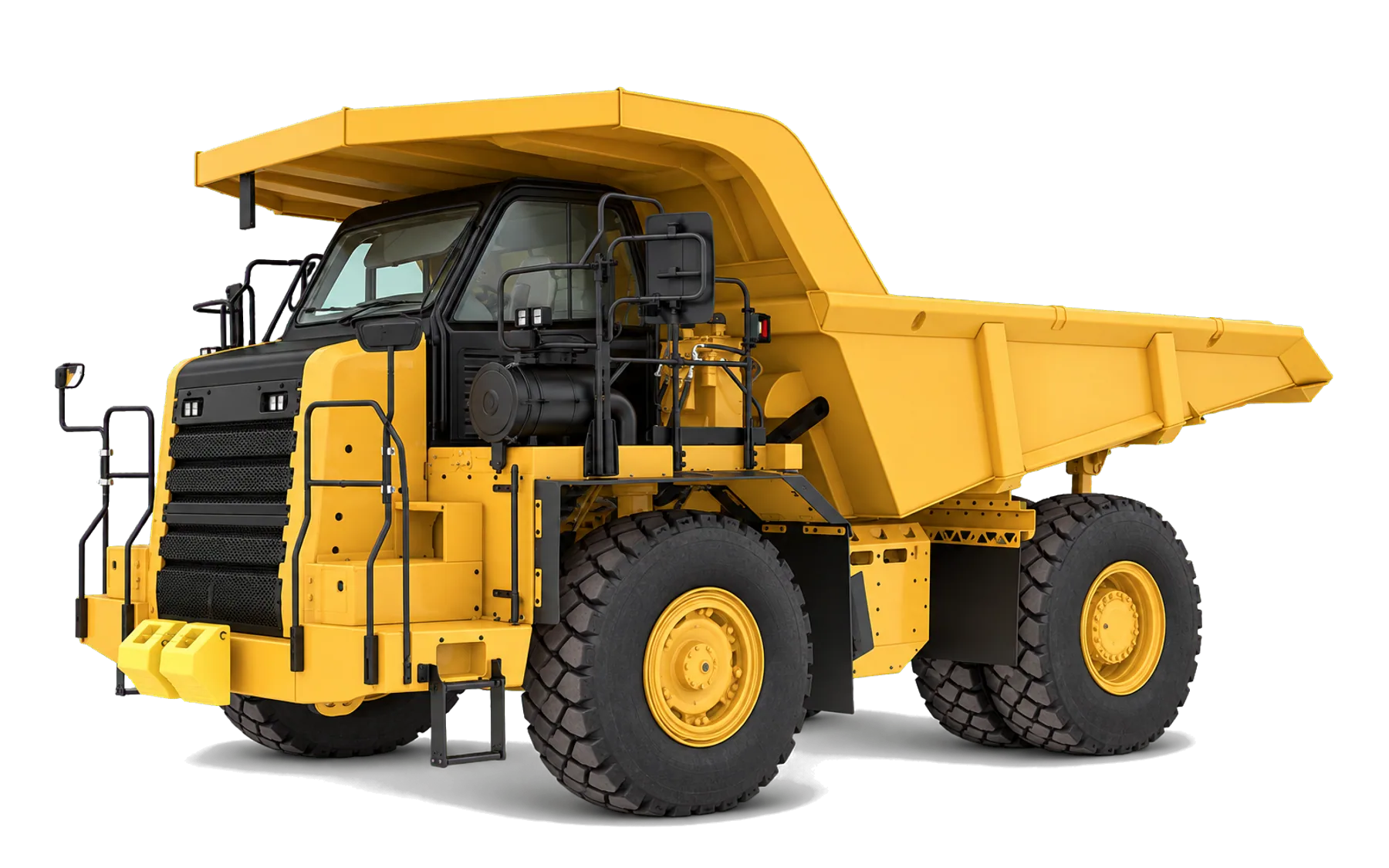

Off-highway truck of the 38.6-tonne payload class: Cat C15 engine from Caterpillar's regional sheet for Africa, the Middle East and Eurasia; body 25.2 m³.
- Passport
- Payload
- 38 649 kg
- Engine power
- 364 kW
- ISO 9249
- Body volume
- 25.2 m³
- ISO 6483
Specification
| Payload | 38 649 kg |
|---|---|
| Engine power | 364 kW ISO 9249 |
| Body volume | 25.2 m³ ISO 6483 |
| Engine | Cat C15 |
| Gross vehicle weight | 71 214 kg |
|---|---|
| Transport length | 8 796 mm |
| Transport width | 3 693 mm |
| Transport height | 3 857 mm |
Source770 Off-Highway Truck Technical Specifications, AEXQ3422-01 (11-2025), Build number 07 (Global) · read 2026-09-08 · regional sheet for Africa, the Middle East and Eurasia
